Manual Engine — AI-Powered Documentation

Automatic Documentation That Stays Current

We built a parallel AI documentation generator that automatically creates and maintains technical documentation for every page in the application. It analyzes panel XML structure, captures screenshots, and generates multi-language documentation — then tracks changes and regenerates only what's needed.

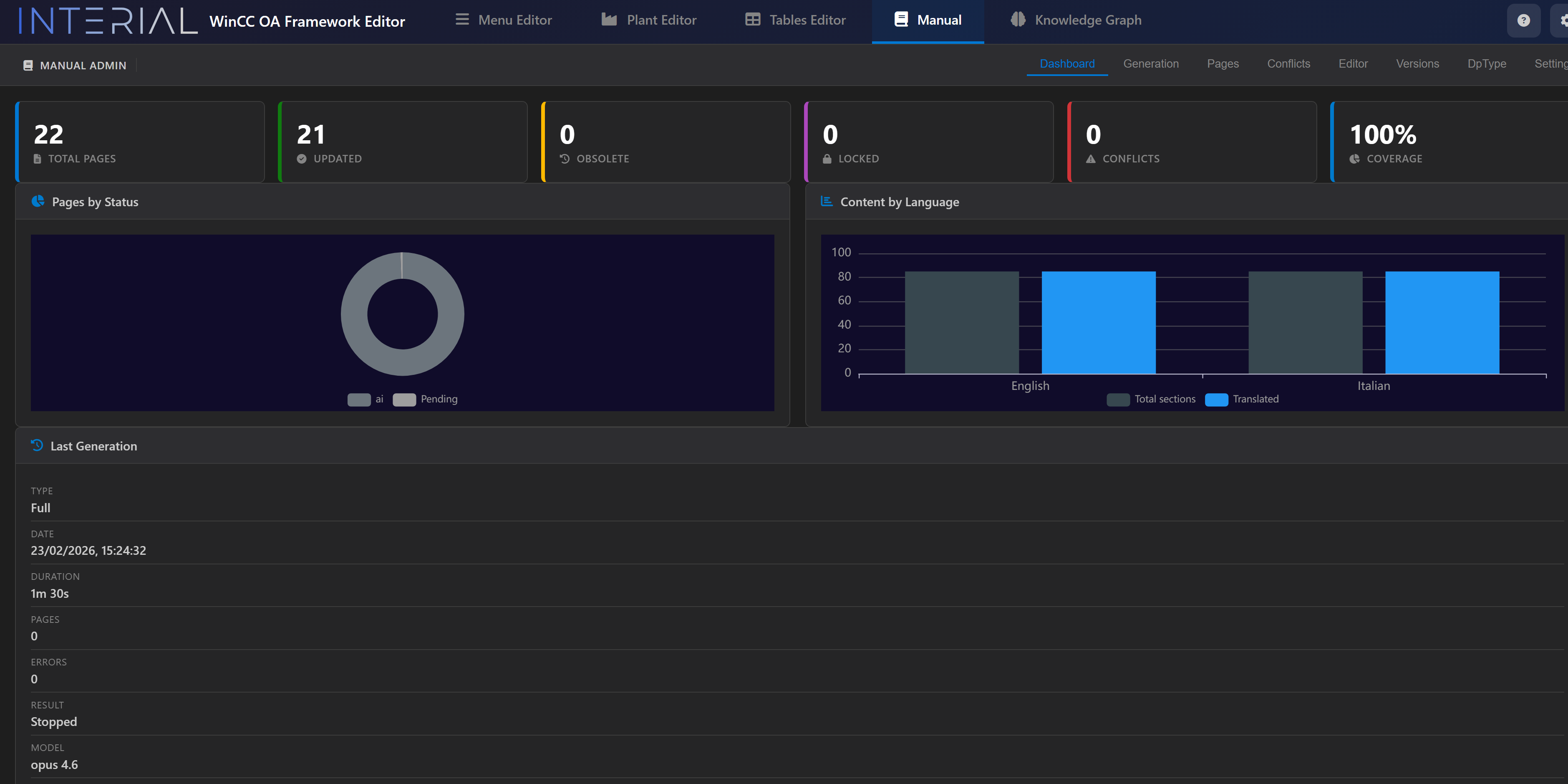

The Manual Admin dashboard: 22 total pages, 21 updated, 0 obsolete, 0 conflicts, 100% coverage. The pie chart shows page status, the bar chart shows content by language (English and Italian sections generated). Last generation: Full run completed on 23/02/2026 at 15:24:32, duration 1m 30s, using Claude opus 4.6.

How It Works

4-Phase Generation Pipeline

Phase 1 — Menu Sync: The system flattens the hierarchical menu JSON and creates a documentation page for every navigable item. It knows the full menu path, panel file, and $DP parameters for each page.

Phase 2A — Screenshot Capture: For each page, the system navigates the live WinCC OA UI (via the RPC bridge), captures a screenshot, and reads the panel XML. A checksum comparison skips unchanged pages — reducing AI costs by 70-90% on re-runs.

Phase 2B — Parallel AI Processing: Up to 3 pages are processed concurrently. For each page, a multi-modal prompt is built that includes:

• The panel XML structure (what elements are on the page)
• A screenshot of the rendered page (what it looks like)
• Extracted datapoint names and labels (what data it shows)
• Previous content (for consistency with existing documentation)

The AI generates structured markdown, which the parser splits by language and section.

Phase 3 — Index & Finalize: Update statistics, signal completion, and publish.

Generation Monitoring

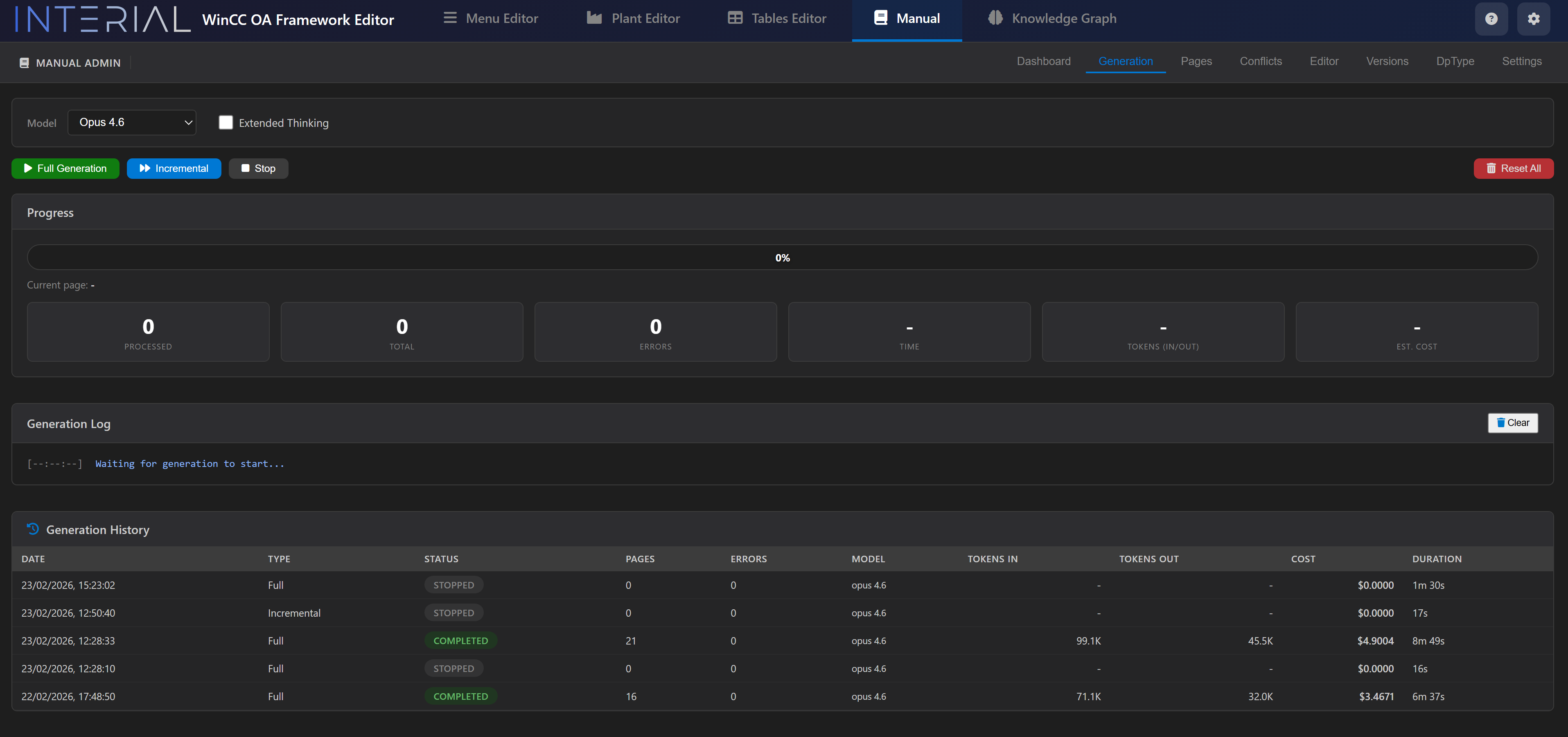

The Generation tab showing: real-time progress bar, page-by-page status, and a complete history of past generation runs with timestamps, page counts, error counts, and token usage. The log area at the bottom shows live generation output.

Key Innovations

Incremental Generation

Every panel XML gets a SHA checksum. On re-runs, only pages with changed checksums are regenerated. This means a project with 100 pages might only need to regenerate 3 after a typical update — saving significant time and AI costs.

Conflict Management

The system tracks whether content was AI-generated or manually edited. When a panel changes and the AI regenerates, if an operator had manually refined the documentation, a conflict is flagged for resolution rather than silently overwritten.

Real-Time Cost Tracking

During generation, the system tracks token usage and estimates cost per model in real time — so you always know exactly what a documentation run costs.

Multi-Language Output

Each section is generated in both Italian and English in a single pass. The language bar chart on the dashboard shows translation coverage.

Version Control

We implemented a versioning system where documentation can be tagged, branched, and compared — enabling release-specific documentation snapshots.

The Manual Viewer — Integrated in SCADA

The generated documentation is not an external website — it lives directly inside the WinCC OA application, accessible from any page via the Operator Manual panel. This means operators never leave the SCADA environment to consult documentation.

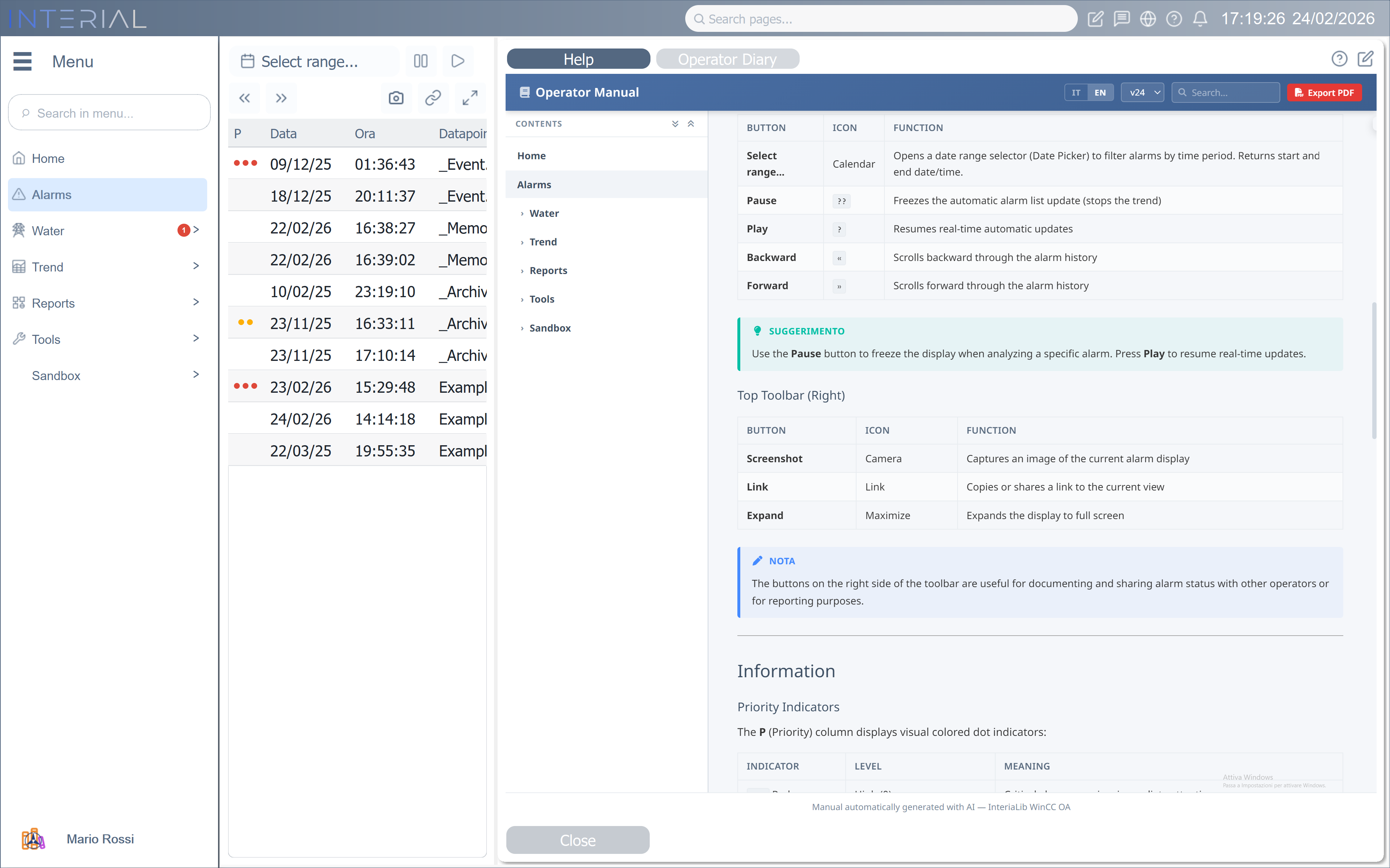

The Operator Manual open inside the live SCADA application: the left side shows the alarm table (live data), the right panel displays the auto-generated documentation for the "Alarms" page — including a toolbar function reference with icons, button descriptions, and usage tips. The documentation was generated entirely by AI from the panel XML and screenshot analysis.

A different section of the same manual page: the "Overview" describes the page purpose, a green "Note" admonition explains auto-refresh behavior, and the "Trend Charts" section documents the chart controls. All of this content was auto-generated — the AI analyzed the panel structure and produced accurate, structured documentation with proper formatting and admonitions.

Why This Matters

Operators see the documentation right next to the live data. No switching tabs, no searching for PDF manuals, no outdated printed guides. When a page changes, the documentation regenerates — and it's immediately available in the same panel.

PostgreSQL Schema

We designed a 12-table relational schema to manage the documentation lifecycle:

Table	Purpose
manual_pages	Page metadata (menu path, panel path, status)
manual_sections	Logical sections per page (auto-detected from XML)
manual_content	Versioned content per section per language
manual_versions	Tagged version snapshots
manual_generation_runs	Run history with statistics and token counts
manual_screenshots	Captured page images
manual_checksums	Incremental change detection
manual_conflicts	AI vs. manual edit tracking
